Brand Name : LINK-PP
Model Number : JK0-0187NL
Certification : UL,ROHS,Reach,ISO
Place of Origin : China
MOQ : 50/500/1000
Price : Supportive
Payment Terms : TT,NET30/60/90 Days
Supply Ability : 4600K.PCS/Month
Delivery Time : Stock
Packaging Details : 50pcs/tray,1200pcs/carton
Midcom PN : JK0-0187NL
Made In China : SM-LPJK0071AWNL
Application : Embedded Computing
Category : Gigabit Rj45 Magjack
Port : Single with LEDs
Hipot : 1500V-2250V
Pulse JK0-0187NL | ||||||||||||||||||||||||||||||||
Trader Part Number | JK0-0187NL |
| ||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Made in China | SM-LPJK0071AWNL | |||||||||||||||||||||||||||||||
Manufacturer | LINK-PP China | |||||||||||||||||||||||||||||||
Description | Rj45 Transformer 1000M | |||||||||||||||||||||||||||||||
Documents Available | PDF/3D/Step/IGS/Price/Cross | |||||||||||||||||||||||||||||||
Quantity Available | 2,000 PCS or 4 weeks |
JK0-0187NL Electrical Specifications
1.OCL(100KHz,0.1V,8mA DC Bias):350uH min
2.Turns Ratio(±2%):
TX=1CT:1 RX=1CT:1
3.Insertion Loss:
1-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-10MHz:-20 30MHz:-16
60-80MHz:-12 80-100MHz:-10
5.Crosstalk(dB MIN):
1-10MHz:-40 32-65MHz:-35
65-100MHz:-30
6.CMR(dB MIN):
1-125MHz:-30 125-500MHz:-20
7.HI-POT:1500-2250V
8.Operating Temperature: 0~70℃./ -40~85℃.
![]() |

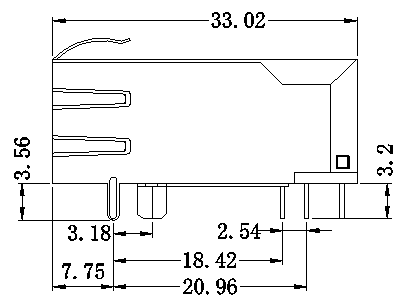

JK0-0187NL PulseJack Gigabit 100/1000 Base-T 1x1 RJ45 integrated connector Images |
